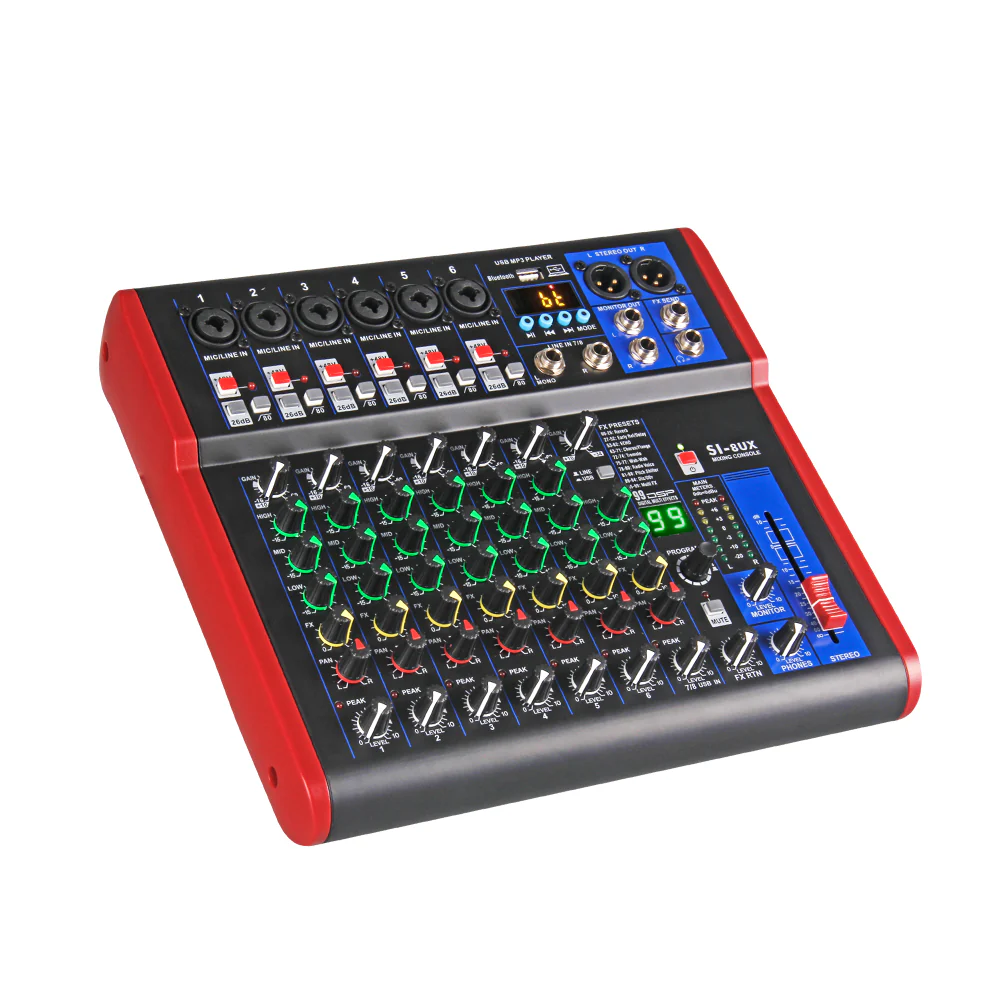

The device caters multiple device connectivity because it has 8 channels. It has 1 1/4’’ (L/R) monitor outputs, 1 XLR(L/R) stereo output, 6 XLR & 1/4’’ microphone inputs, 1 pairs 1/4’’ mono + stereo,1/4’’ FX send and 1/4’’ headphone jack
Features:
(1) Microphone/line inputs, stereo line input
(2) Phase, level and overload indication
(3) 1 auxiliary send
(4) MP3, sound card, USB input/output for playback recording
(5) Low average filter (80HZ)
(6) 99 DSP scene effects
(7) Single channel PAD switch (26db)
Parameter:
(1) Equalizer: HIGH +/- 15db @ 12KHZ
MID +/- 15db @ 2.5KHZ
LOW +/- 15db @ 80KHZ
(2) Input impedance: MIC3.8KΩ, other inputs: ≥10KΩ
(3) Output impedance: 120 non-parallel, 240Ω parallel, 22Ω headphones
(4) Frequency response: 20HZ-30KHZ + 0 / -1db
(5) Distortion: <0.01%
The 99 DSP scene effects:
00-26:Reverb
27-52:Early Ref/Delay
53-62:Echo
63-71:Tremolo
75-77:Wah-Wah
78-80:Radio Voice
81-88:Pitch Shifter
89-94:Dis/0Dr
95-99:Multi FX
